Aqua Signal Series 70 (Double Tier)

Description

Aqua Signal Series 70 Single Tier – For vessels over 20 Metres (65 Feet). 3nm Visibility (6nm for Masthead version).

Takes x2 P28 Bulb’s (24/110/230v) which is not included, please order bulb separately. May also be used on inland waterways without limitation of ship´s length. (H) 550mm x (W) 220mm

Housing
Unbreakable and extremely reliable Polycarbonate, glass fibre reinforced, other components of non-corrosive materials. Housing self-ventilated. Nonmagnetic, seawater resistant Housing colour Mat black

Electric
Main lighting (upper unit) and spare lighting (lower unit) each come with 1.5 m special connection cable 2 x 1.5 mm², self-protective insulation, class II.

Cable Insert
2 special cable glands metric pressure screw M24 x 1.5 with protection against buckling

Mounting

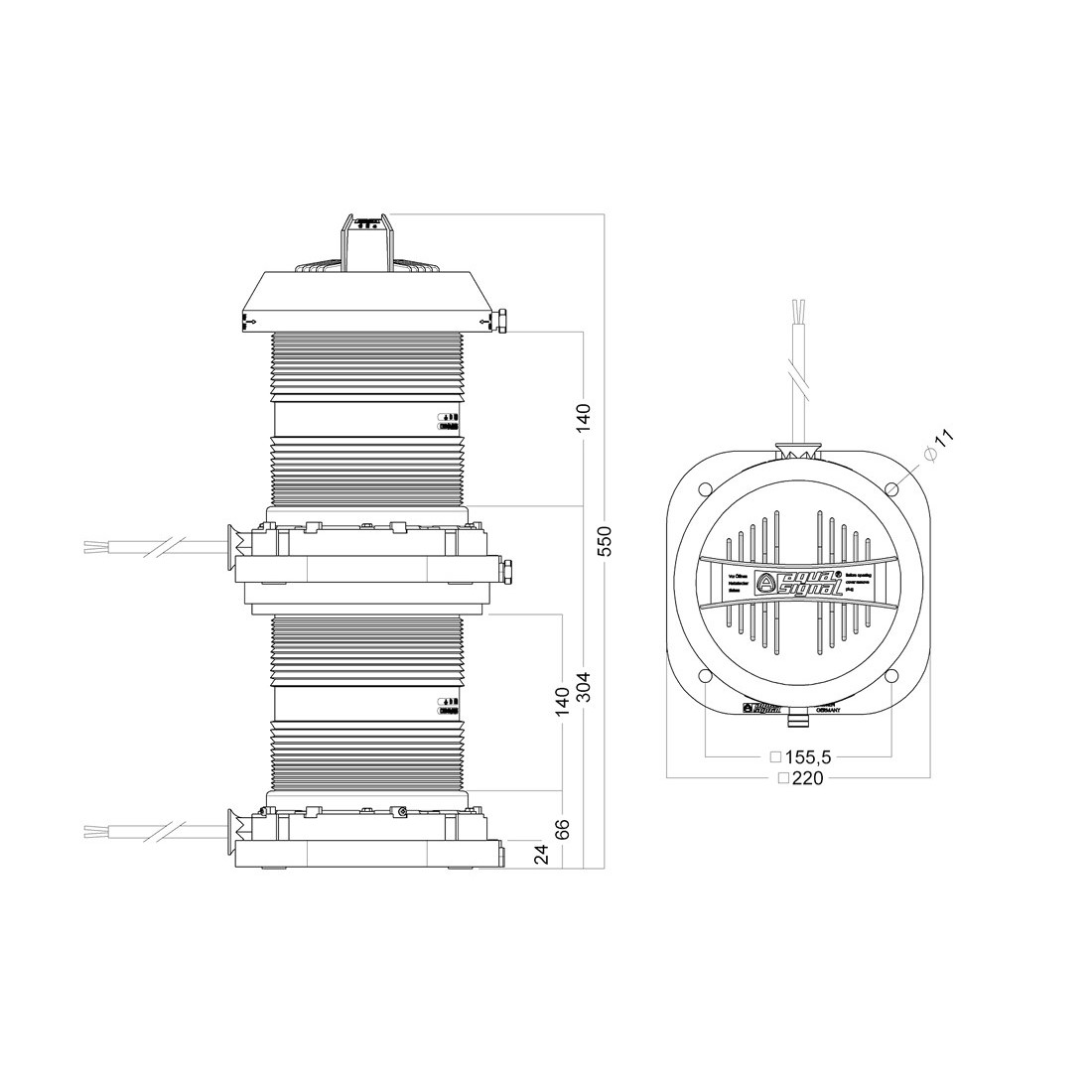

Base flange attachment, 4 screws (not included). All-round lights may also be hoisted. Additional mounting aids see drawing

Approvals
a) International according to IMO Colreg 1972, in Scandinavian countries too, in Germany through BSH, other countries in particular see list of approvals. Has Wheel Mark.
b) US-Coastguard, China Classification Society. These lights may only be used on ships flying the flags of the USA or P.R. China

Min. visibilities
3 n.m., masthead light 6 n.m

Optics
Seawater resistant, special plastic Fresnel lens

IMO / BSH / USCG / CCS / CE
EU Wheel Mk
