Index Marine Junction Boxes

Secure dry connections are important to the reliability of electrical and electronic equipment.

Index Marine’s electrical junction box kits deliver a neat and easy-to-install solution to wiring applications.

ABS plastic boxes with leaf protected connector blocks, these junction boxes secure and keep dry (splash proof) your onboard electrical connections.

Available in 3 different versions

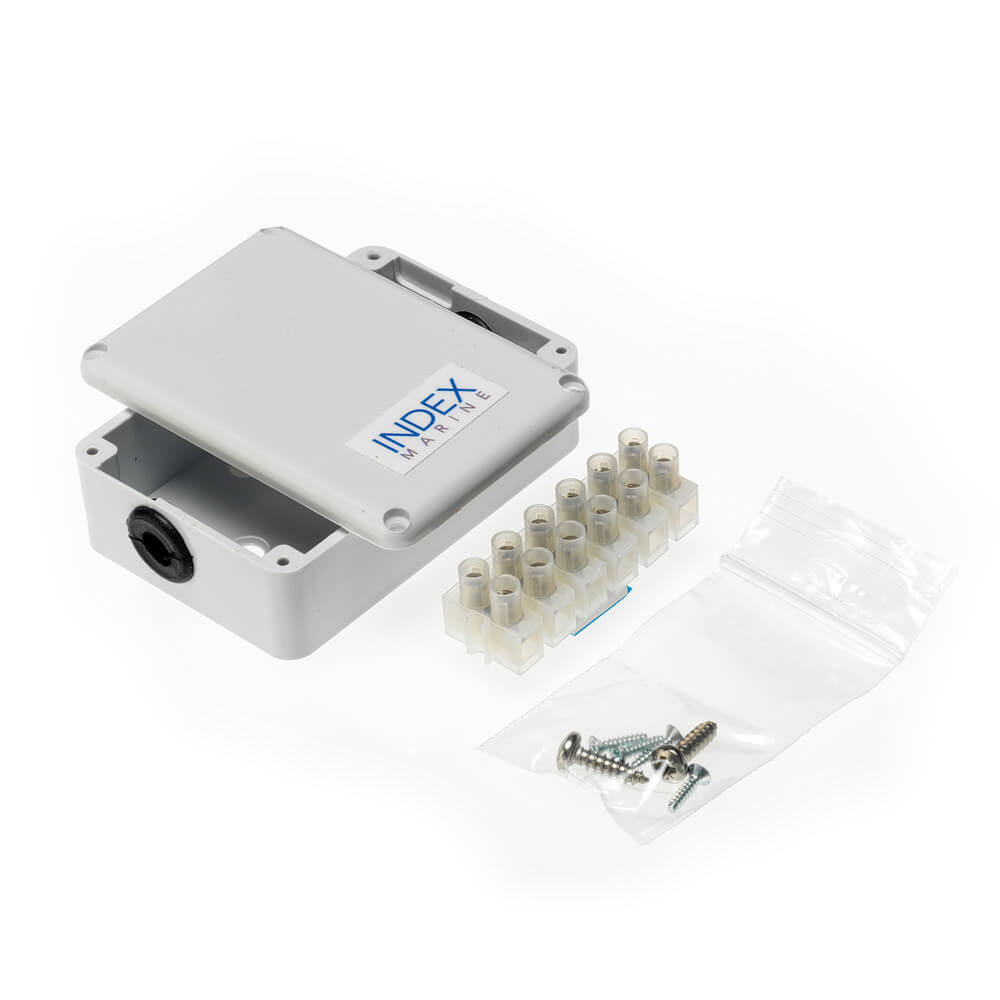

07-A4-JB1P:
Size – 72mm x 50mm x 25mm
Cable Entries – 2 x 6.5mm Blind Grommets
Connector – 6 Way Connector Block

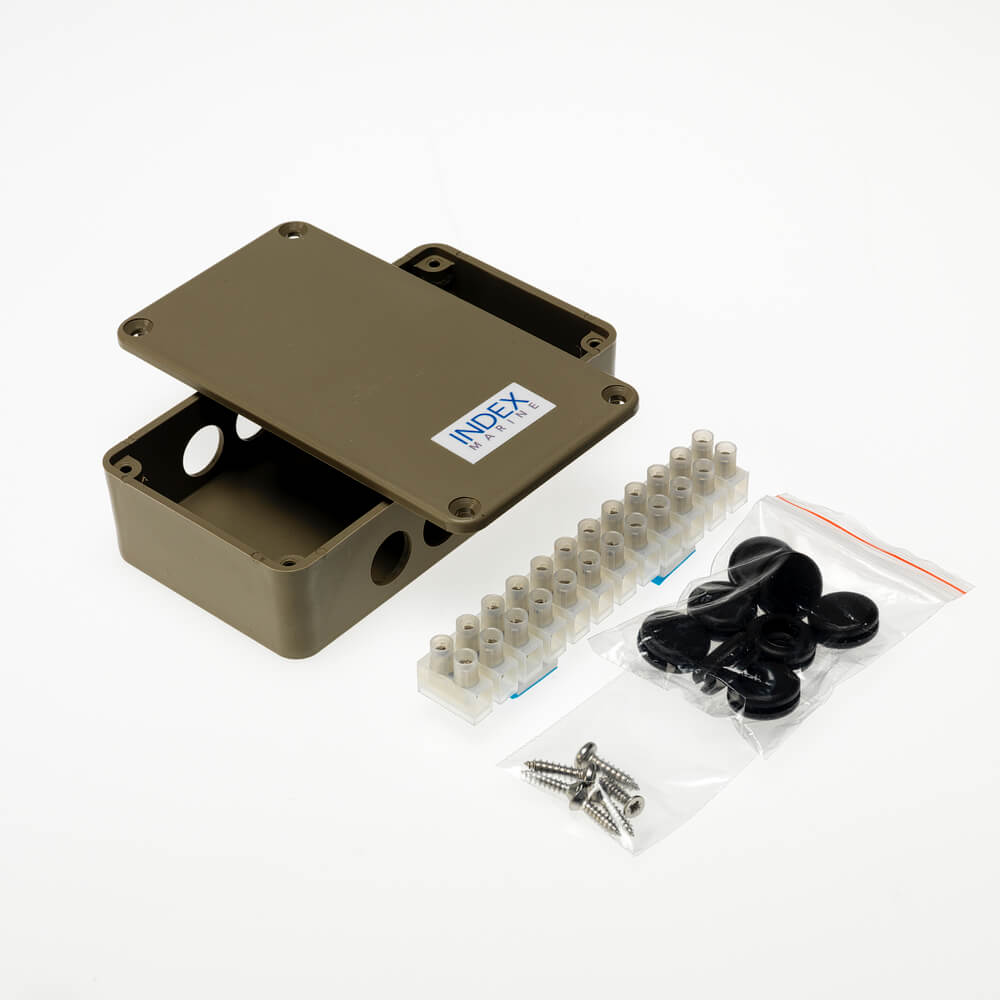

07-A4-JB3P:
Size – 111mm x 60mm x 31mm
Cable Entries – 8 x 10mm Blind Grommets
Connector – 12 Way Connector Block

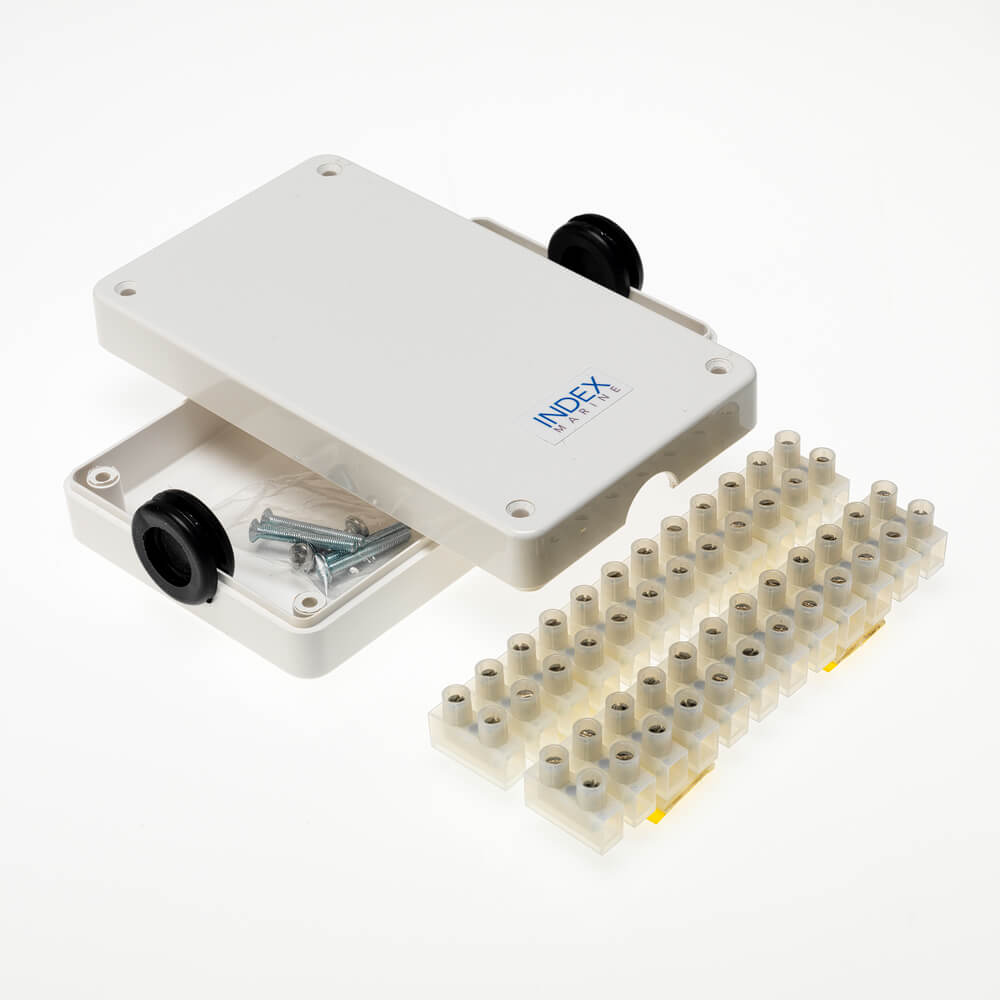

07-A4-JB4P:
Size – 143mm x 80mm x 30mm
Cable Entries – 2 x 15mm Blind Grommets
Connector – 2 x 12 Way Connector Block
