Description

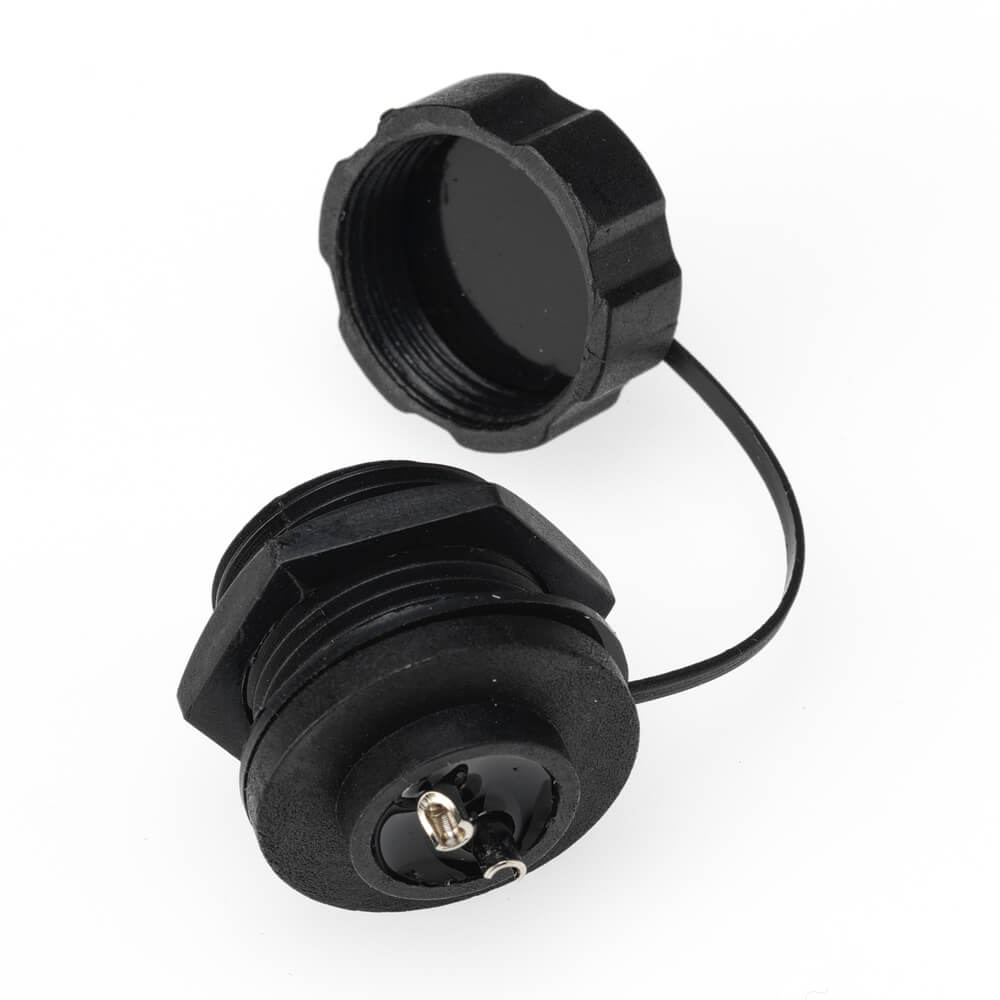

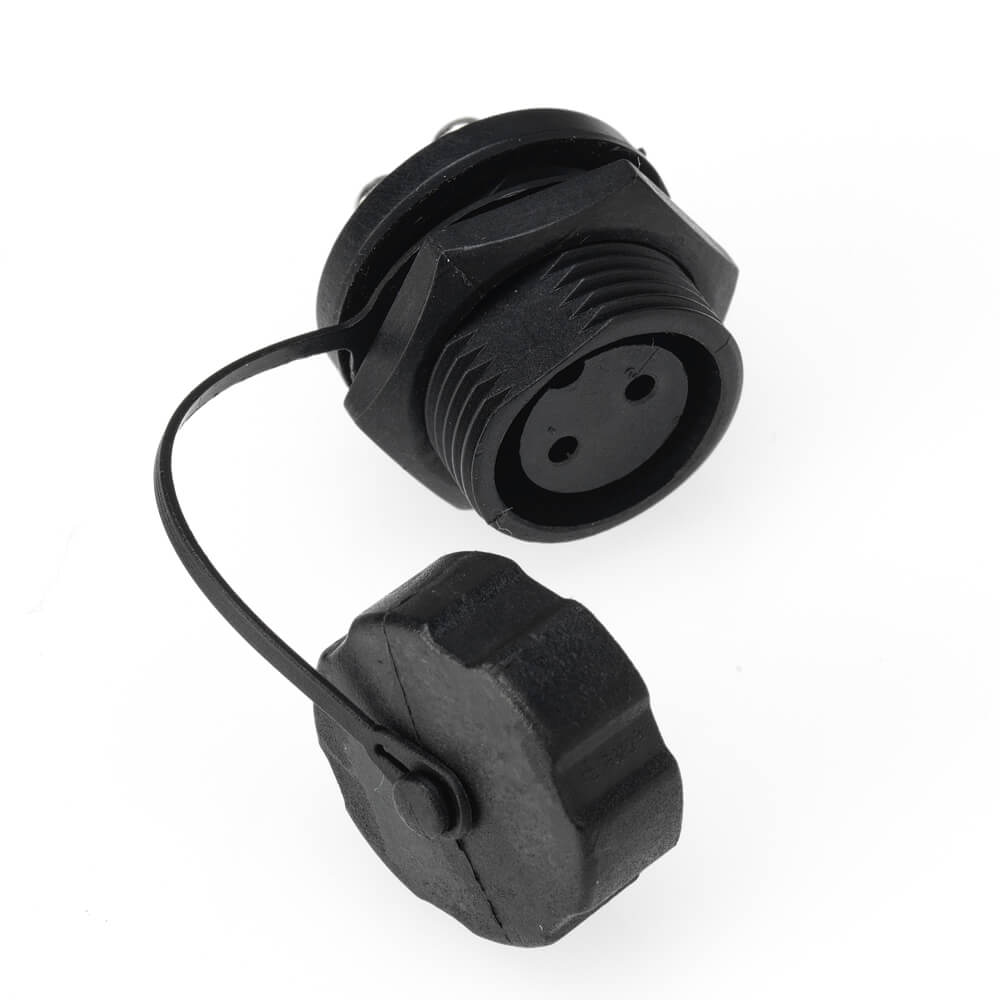

Grafter Panel Mount Sockets – Solder Terminal

The Grafter range of environmentally rated sealed circular connectors, plugs and sockets are designed to deliver safe, secure, and reliable connections for harsh environment applications.

Rated at up to 250V and 12A the Grafter connectors are suitable for lighting, audio, nav kit and many other electrical accessories. They are small, unobtrusive, and come with waterproof caps to keep water out when disconnected. The Grafter range offers in-line plugs and sockets, and optional mounted sockets.

The solder terminal panel-mount socket (female) is available in: 2 pin, 3 pin, 4 pin, 5 pin and 6 pin variants. IP68 comes with protective cap.

Specifications

• Dimensions – 24 x 31 mm
• Rating – 250V 12A (2-4 Pin), 250V 5A (5-6 pin)
• Max Cable Size – 6.5 – 8.5 mm
