Index Marine Bulgin Low Flange Plug & Socket Kit

Index Marine Bulgin Low Flange Plug & Socket Kit is ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections….

Description

Index Marine Bulgin Low Flange Plug & Socket Kit

Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive.

Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism, The Index Marine Bulgin connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

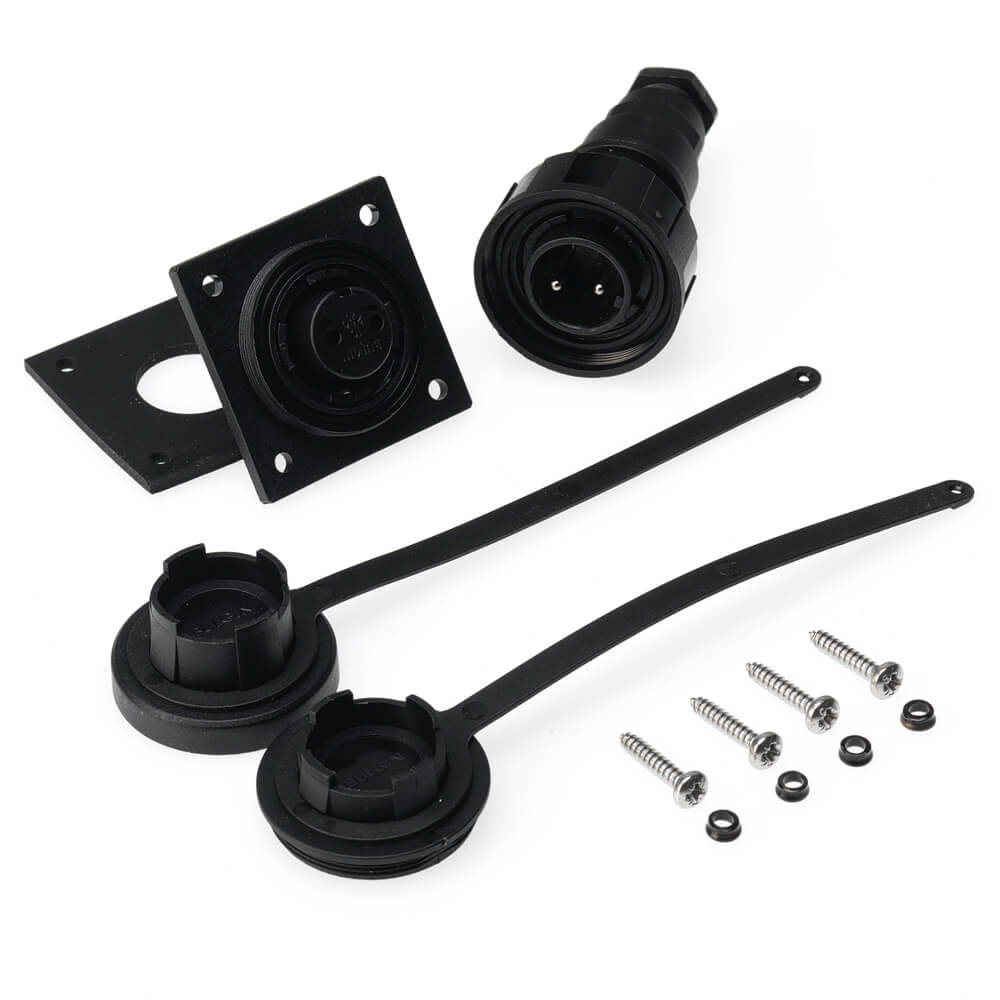

This kit consists of

1 x low profile flange mount connector

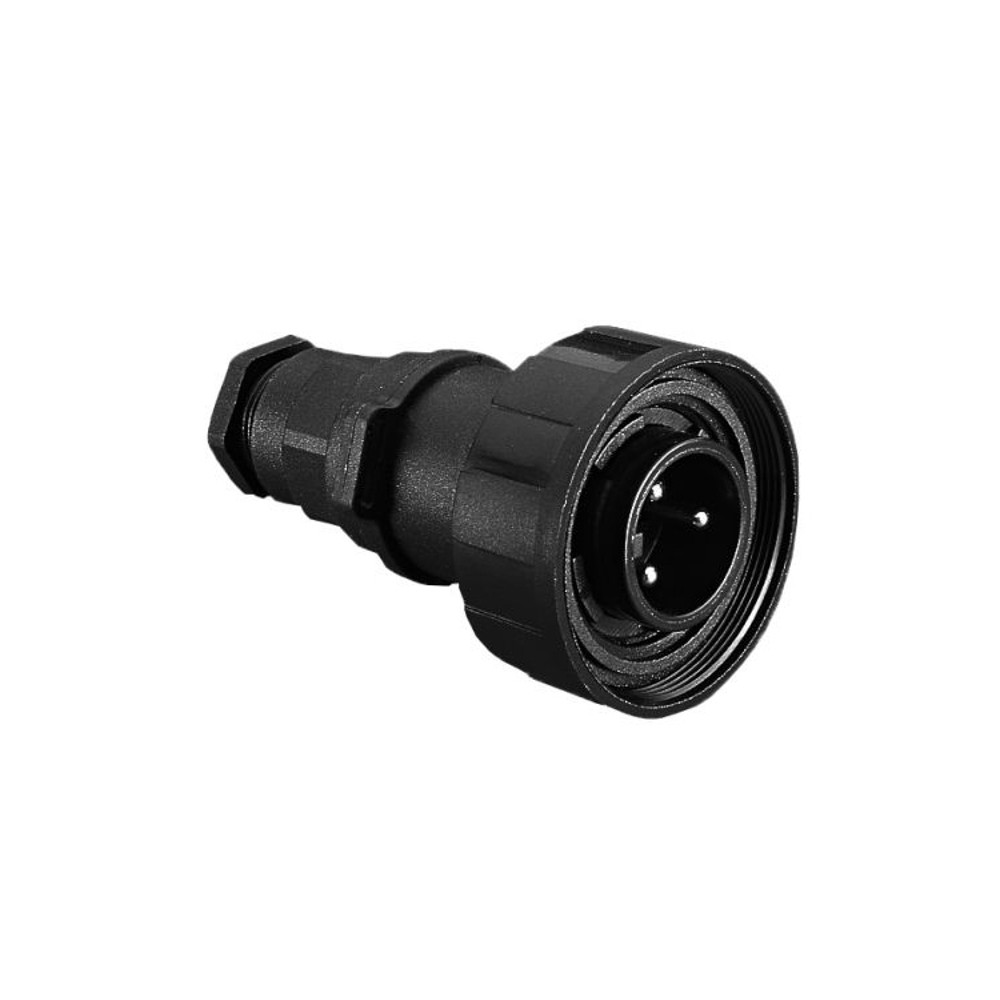

1 x flex plug connector

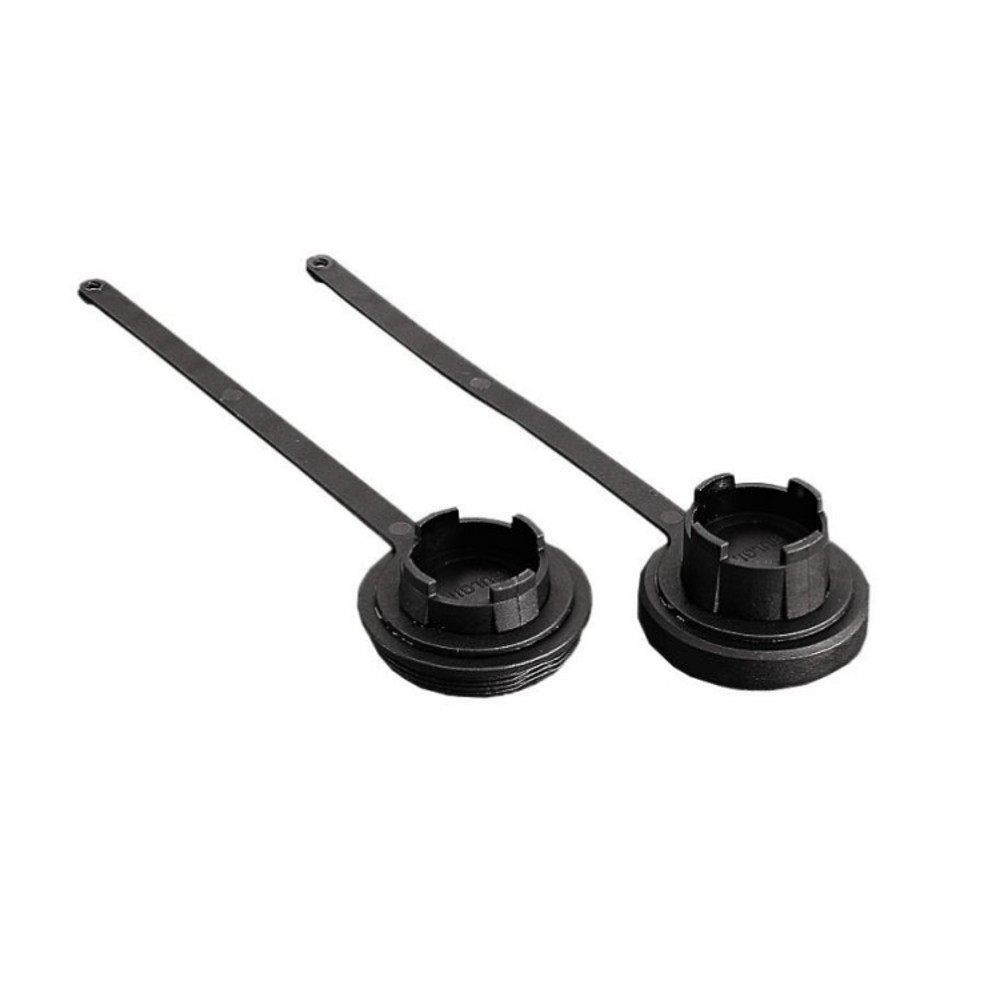

2 x sealing cap

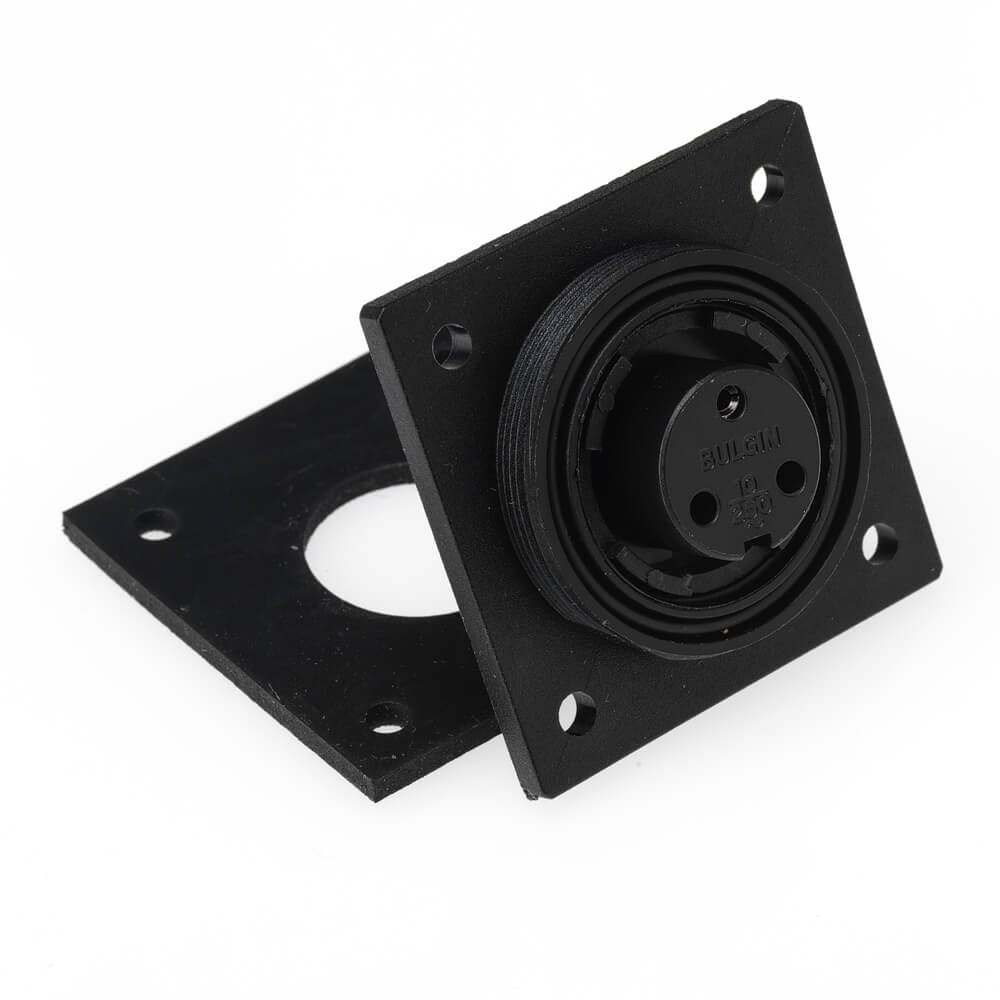

The low-profile flange mount socket provides a waterproof and dustproof connection when mated with the appropriate pin flex connector.

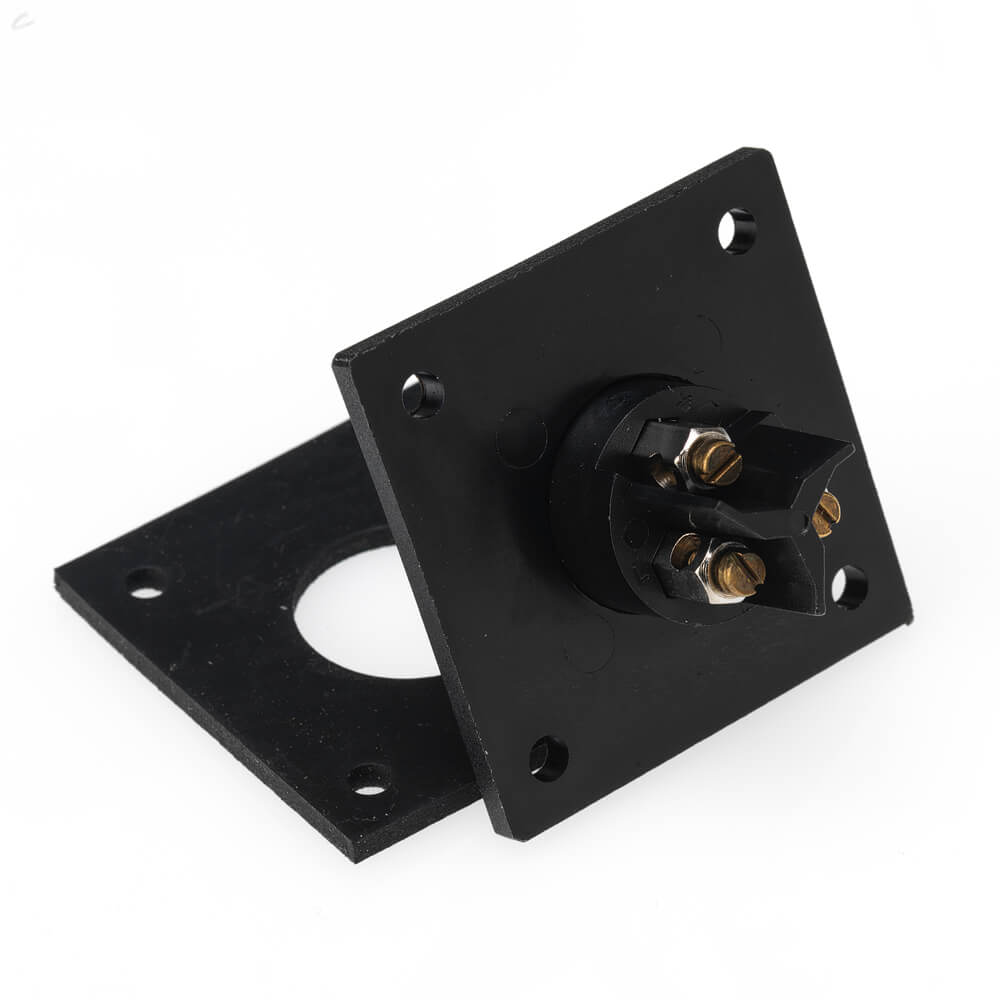

The 3 pin socket version has a leading earth contact. The flange mount is screw fixed and supplied with a sealing gasket and screw sealing grommets. Both plug and mount socket connectors are supplied with sealing cap to maintain IP68 rating when unmated.

Specifications

Available in 2 pin, 3 pin, 4 pin, 6 pin, 7 pin and 9 pin.

Max Cable Size – 3.5mm – 9mm
Flange Dimensions – Height 44.5mm x Width 44.5mm
Plug Cap Dimensions – Length 16mm x Diameter 38mm
Socket Cap Dimensions – Length 20.5mm x Diameter 38mm
Connector Length – 2 Pin 43mm, 3 Pin 38mm, 4 Pin 31mm, 6 Pin 31mm, 7 Pin 38mm, 9 Pin 26mm

Additional information

Options

, , , , ,

SKU P-07-B-DP2 PL/SKT Category

Out of stock. Available for backorder.

£47.94£67.14
