Description

Index Marine Bulgin In Line Plug & Socket Kit

Environmentally sealed power connectors have been designed into a wide range of markets such as marine, industrial and automotive.

Robustly constructed in Polyurethane with an easy turn bayonet coupling mechanism, The Index Marine Bulgin connectors are ideal for a variety of high-performance applications that require fast, dustproof and watertight power connections.

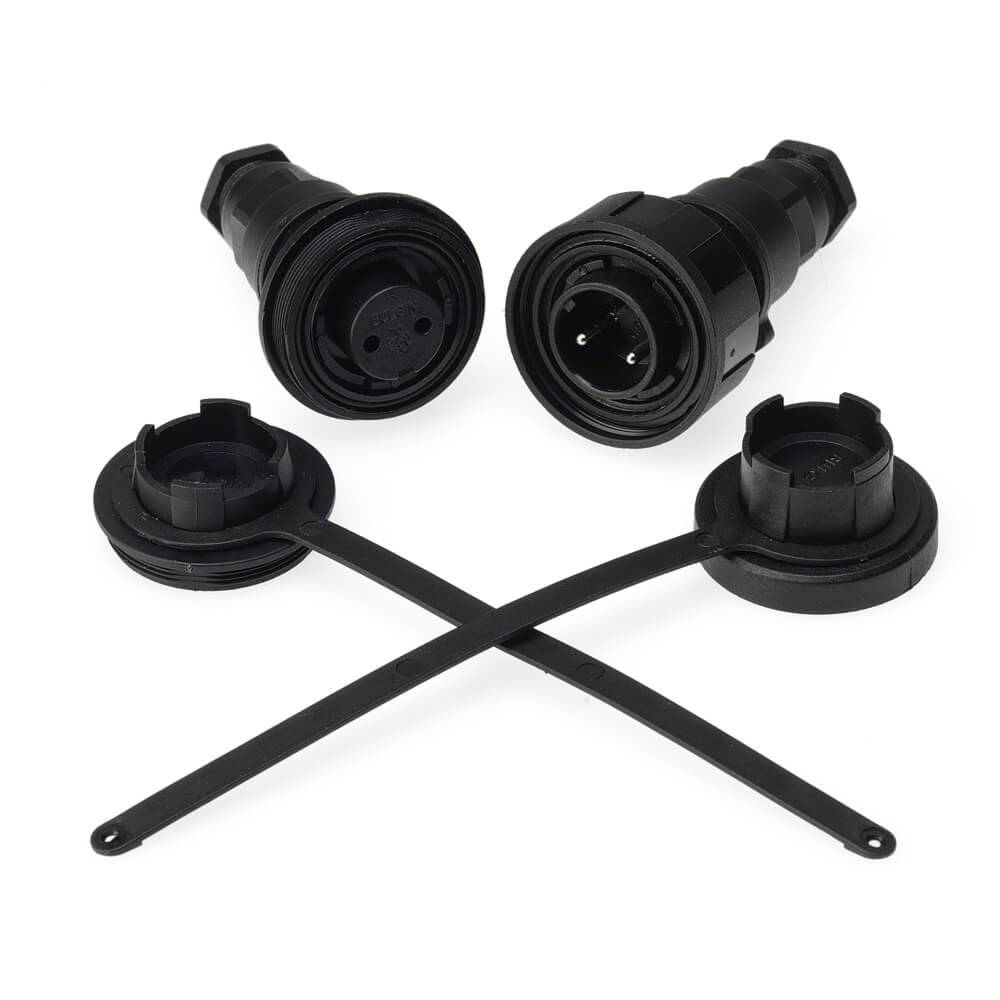

The kit consists of

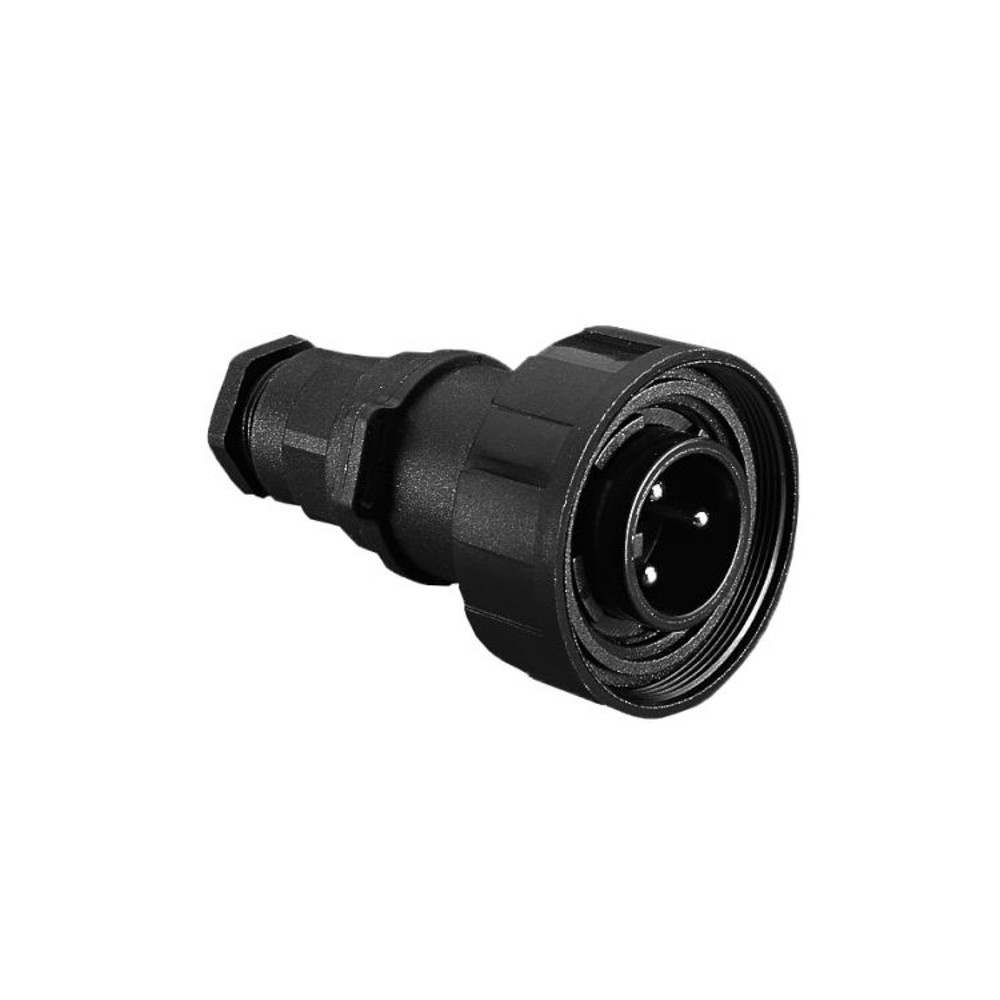

1 x flex plug connector

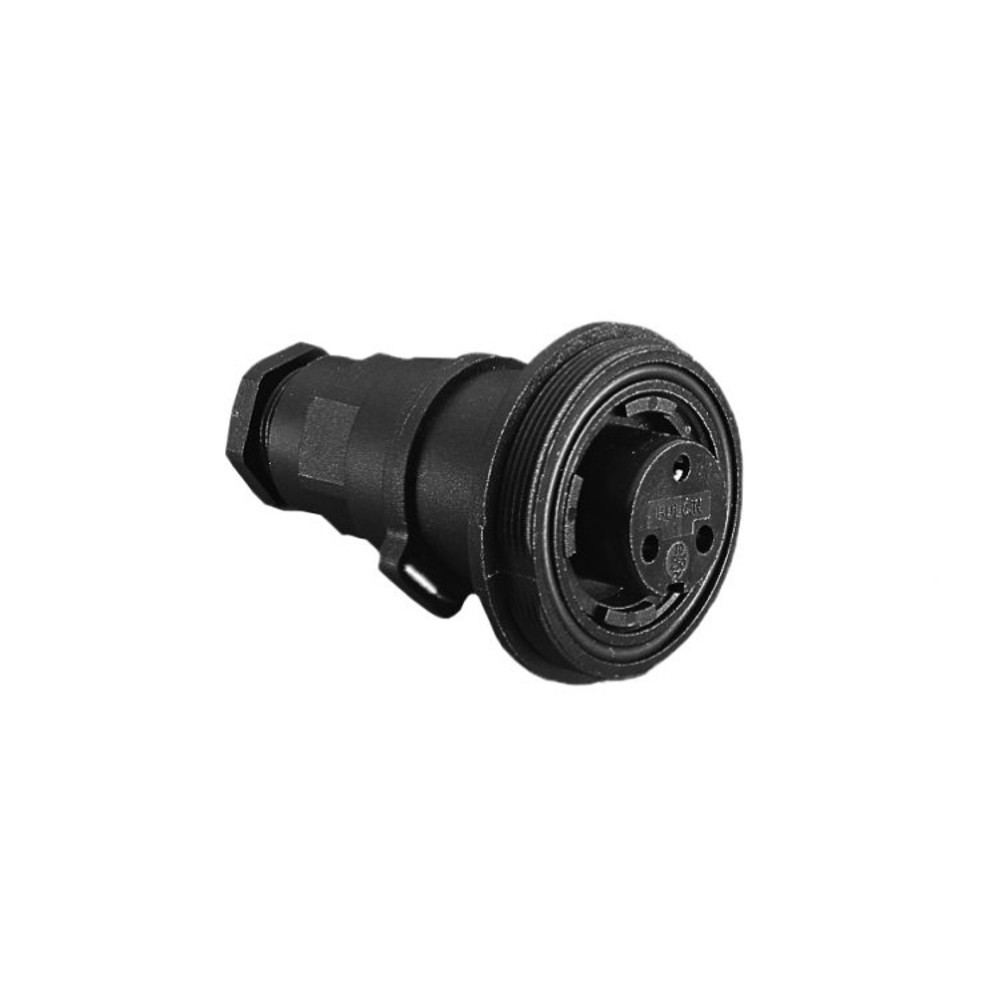

1 x flex in-line socket connector

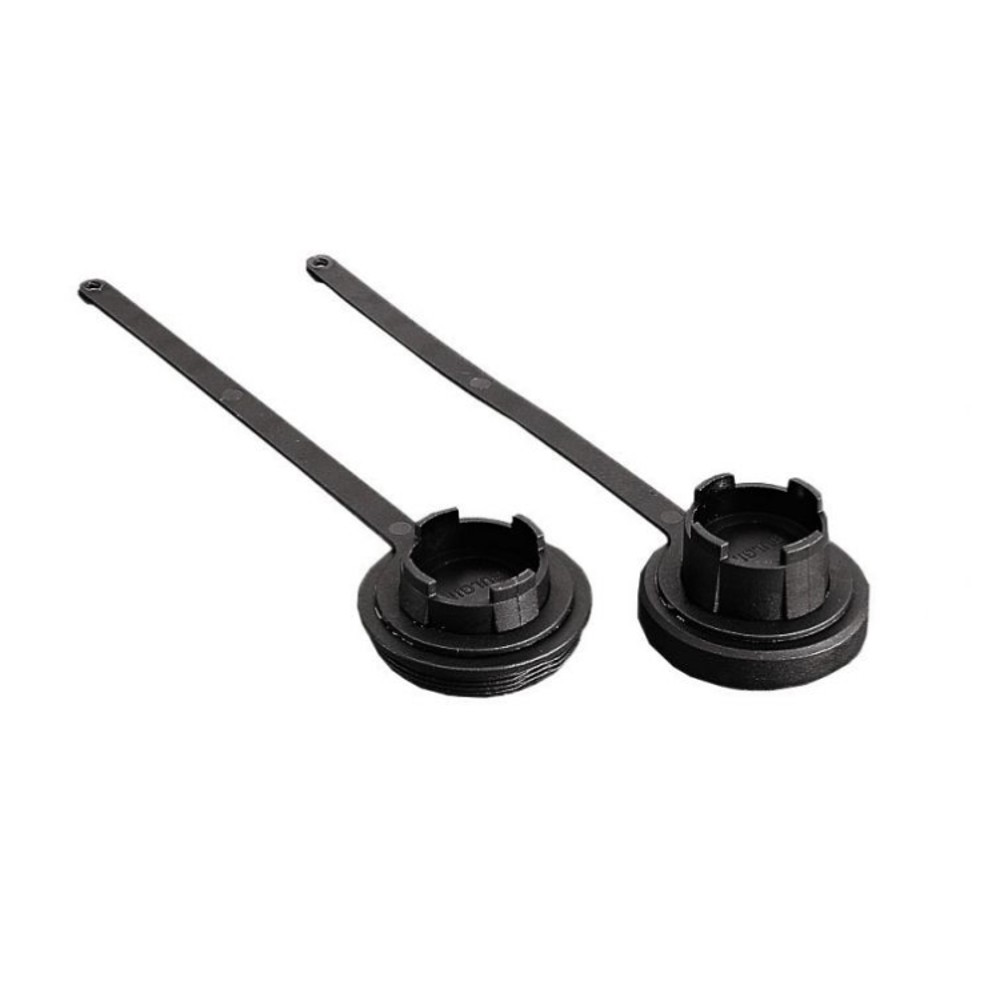

2 x sealing cap

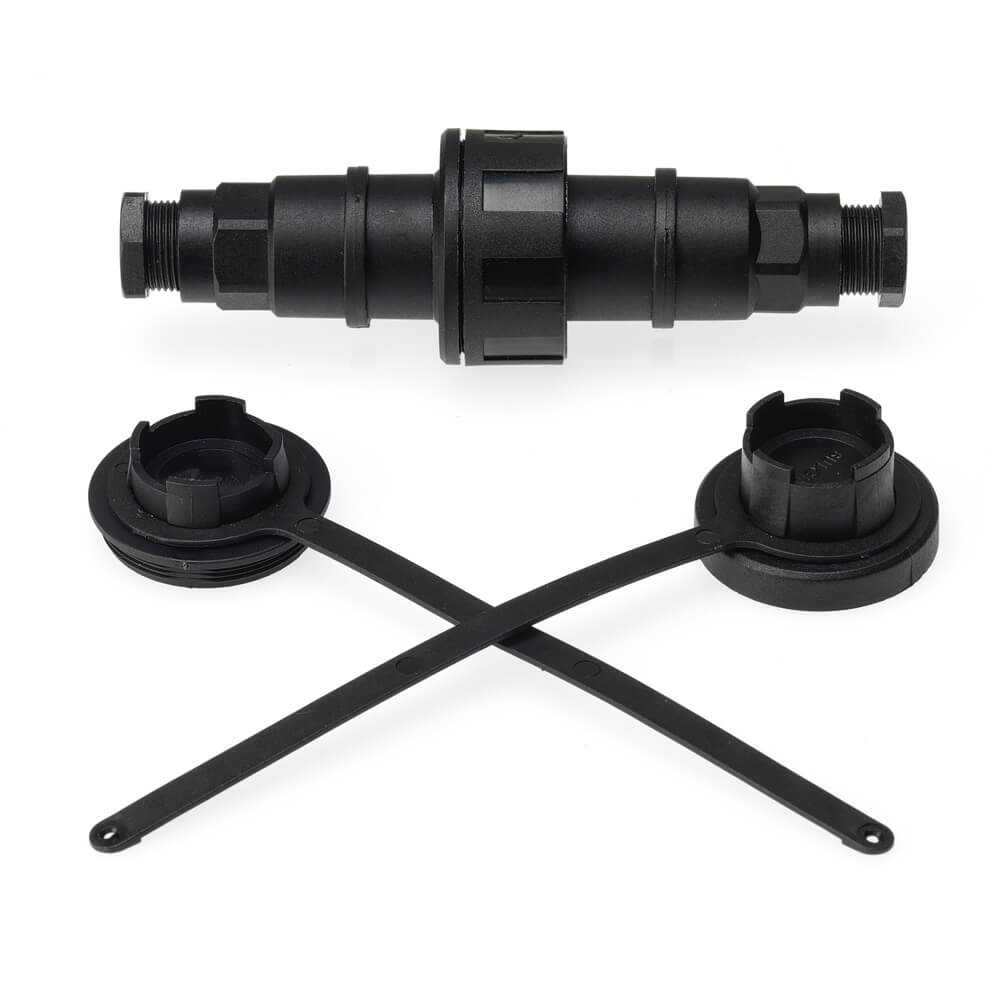

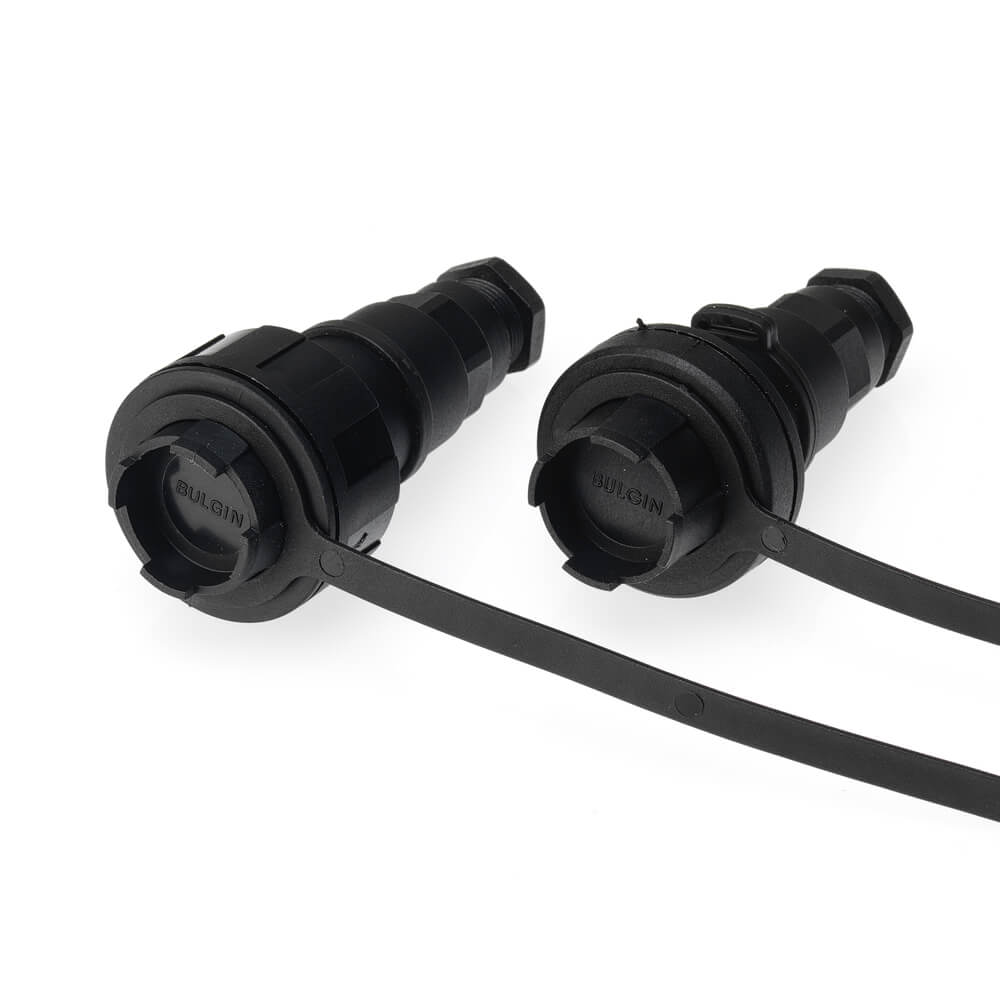

The in-line flex socket provides a waterproof and dustproof connection when mated with the appropriate pin flex plug connector. The 3 pin socket version has a leading earth contact. Both in-line plug and socket connectors are supplied with sealing cap to maintain IP68 rating when unmated.

Specifications

Available in 2 pin, 3 pin, 4 pin, 6 pin, 7 pin and 9 pin.

Max Cable Size – 3.5mm – 9mm
Plug Dimensions – Length 69mm x Diameter 38mm
Socket Dimension – Length 65mm x Diameter 38mm
Plug Cap Dimensions – Length 16mm x Diameter 38mm
Socket Cap Dimensions – Length 20.5mm x Diameter 38mm
